Fully Automatic Paper Bag Making Machine Sheet Feeding 40Bags - 70Bags Per Min
Specifications:
Technical parameters
This machine can
produce 3 kinds of
different paper bags |  |  |  |
| Max.sheet(LXW) | 1080X600 | 1080X600 | 1080X600 |
| Min.sheet(LXW) | 600X350 | 600X350 | 600X350 |
| Sheet Weight | 100g-190g | 100g-190g | 100g-230g |
| Bag Width | 220-380mm | 220-380mm | 220-380mm |
| Bottom Width | 80-170mm | 80-170mm | 80-170mm |
| Bag length | 250-490mm | 250-490mm | 260-540mm |
| Top turn in width | 40-60mm | 40-60mm | ---- |
| Handle patch length | 188.5mm | 188.5mm | 188.5mm |
| Handle patch width | 35-55mm | 35-55mm | 35-55mm |
| Handle patch weight | 100g-300g | 100g-300g | 100g-300g |
| Handle patch roll diameter | φ 1000mm | φ 1000mm | φ 1000mm |
| Handle patch roll width | 70-110mm | 70-110mm | 70-110mm |
| Paper rope diameter | 4-6mm | ---- | 4-6mm |
| Handle rope height | 170-195mm | ---- | 170-195mm |
| Speed | 40-70bags/min | 40-70bags/min | 40-70bags/min |
| Total Power | 25kw | 25kw | 25kw |
| Total Weight | 20T | 20T | 20T |
| Machine Size | 16.1x5.1x3.1m | 16.1x5.1x3.1m | 16.1x5.1x3.1m |
| Glue Type | Water soluble cold glue
(hot-melt glue) | Water soluble cold glue
(hot-melt glue) | Water soluble cold glue
(hot-melt glue) |
Description:
LO1080S-380 fully automatic bag making machine (adopts Italy technical) is taking sheet paper,reel reinforced paper and paper twist rope as raw material, with one time finish continuous process of handle manufacturing,handle adhering,top folding(or without top folding), tube forming, gusset forming, bottom pasting, compaction output and stick reinforced paper,top folding,tube forming,gusset forming,punch eyelets, bottom pasting,compaction output.with three perfect technology combination, one machine with three methods of production, so it is worthy to buy. This machine is especially suitable for the outside bag production of clothing,footwear, sports brand or luxury brands. This machine truly realizes fully automatic production.
Applications:

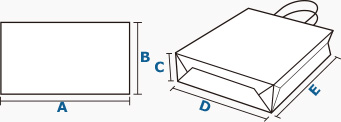

Suitable paper
| | A | B | C | D | E |
Max.Size
Min.Size | 1080
600 | 600
350 | 170
80 | 380
220 | 490
250 |
Suitable Paper: Kraft paper, art paper
(including film laminated paper)
Competitive Advantage:
- High Speed
- Low price
- Stable quality
- labor cost saved
- maintainers easily
Why choose us?
1. We are the famous science and technology professional enterprise specialized in researching, developing, manufacturing and selling of Bag Making Machines, Paper Bag Making Machine, Film Blowing Machine, Side Weld Bag Making Machine, Paper Slitting Machine, Non Woven Bag Making Machine, Side Sealing Bag Making Machine, Flexographic Printing Machine, Gravure Printing Machine, Paper Cup Making Machine, Tissue Paper Making Machine, Automatic Bag Making Machine, Carry Bag Making Machine, with best quality control, best service .
2. 100% QC inspection and debugging Before Shipment.
3. 100% rest assured after-sales service.
Our service
Pre-Sales Service:
According to your need of actual situation and budget, our professional sales team will provide professional consultation and best solution with strong technical support.(such as raw paper purchasing suggestion, jumbo roll dimension needed, packing ways for transportation, suitable machine and processing craft recommendation with detailed explanation especially in embossing and lamination, etc.)
After-Sales Service:
1. We also provide the door to door abroad installation, equipment debugging, technical training service;
2. Warranty:1 year quality assurance
3. Building customer files, solving various technical problems for user;
4. Our technical team give you 100% rest assured global presence service even over the warranty period.
